Bourdon tube pressure gauge with
output signal
Models PGT23.100, PGT23.160
For the process industry, safety version, NS 100 and 160
- Acquisition and display of processes
- Output signal 4 … 20 mA for the transmission of process values to the control room
- Easy-to-read, analogue on-site display needing no external power
- Process industry: Chemical industry, petrochemical industry, oil and gas, power generation, water and wastewater
- No configuration necessary due to “plug-and-play”
- Signal transmission per NAMUR
- Measuring ranges 0 … 0.6 bar to 0 … 1,600 bar
- Safety version S3 per EN 837
- QR code on dial links to instrument-specific information
Description

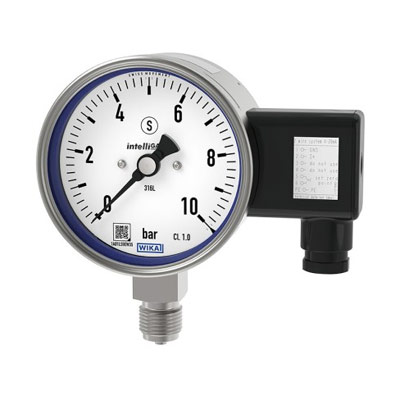

Wherever the process pressure has to be indicated locally and, at the same time, a signal transmission to the central control or remote centre is desired, the model PGT23 intelliGAUGE® (patent, property right: e.g. DE 202007019025) can be used.
Through the combination of a mechanical measuring system and electronic signal processing, the process pressure can be read securely, even if the voltage supply is lost.
The intelliGAUGE® model PGT23 fulfils all safety-related requirements of the relevant standards and regulations for the on-site display of the working pressure of pressure vessels. An additional measuring point for mechanical pressure display can thus be saved.
The model PGT23 is based upon a model 23X.30 high-quality, stainless steel safety pressure gauge.
The all welded and robust Bourdon tube measuring system produces a pointer rotation proportional to the pressure. An electronic angle encoder, proven in safety-critical automotive applications, determines the position of the pointer shaft – it is a non-contact sensor and therefore completely free from wear and friction. From this, the electrical output signal proportional to the pressure, 4 … 20 mA, is produced.
The electronic WIKA sensor, integrated into the high-quality pressure gauge, combines the advantages of electrical signal transmission with the advantages of a local mechanical display.
The QR code on the dial allows instrument-specific information such as the serial number, the order number, certificates and other product data to be retrieved from the internet easily and in the long term.
