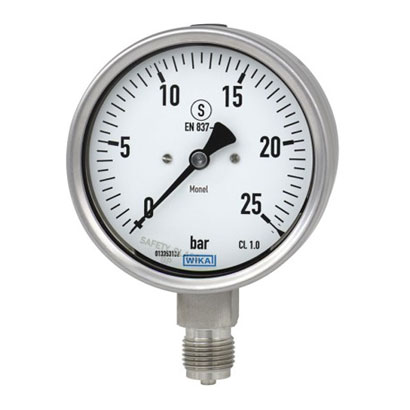

Bourdon tube pressure gauge
Models 262.50, 263.50, 262.30, 263.30
For the process industry, Monel version
For gaseous and liquid aggressive media that are not highly viscous or crystallising, also in aggressive environments
Oil and gas industry, chemical and petrochemical industries, power engineering and also water and wastewater technology
Sour gas applications, also with NACE requirement
Oil and gas industry, chemical and petrochemical industries, power engineering and also water and wastewater technology
Sour gas applications, also with NACE requirement
With case filling (model 263) for applications with high dynamic pressure loads and vibrations
Models 262.30 and 263.30: safety version with solid baffle wall (Solidfront) designed in accordance with the requirements of EN 837-1 and ASME B40.100
Suitability for particularly aggressive media, due to very high corrosion resistance
EMICOgauge version, to avoid fugitive emissions
QR code on dial links to instrument-specific information
Models 262.30 and 263.30: safety version with solid baffle wall (Solidfront) designed in accordance with the requirements of EN 837-1 and ASME B40.100
Suitability for particularly aggressive media, due to very high corrosion resistance
EMICOgauge version, to avoid fugitive emissions
QR code on dial links to instrument-specific information
Description
The models 262 and 263 are high-quality Bourdon tube pressure gauges with wetted parts from extremely corrosion-resistant Monel.
The use of high-quality materials and the robust design are geared to applications in the chemical and process engineering industries with particularly aggressive acids or bases. The instrument is suitable for liquid and gaseous media, also in aggressive environments.
Scale ranges of 0 … 0.6 to 0 … 1,000 bar [0 … 10 to 0 … 15,000 psi] ensure the measuring ranges required for a wide variety of applications.
The safety version is made up of a non-splintering window, a solid baffle wall between measuring system and dial and a blow-out back. In the event of a failure, the user is protected at the front side, as media or components can only be ejected via the rear of the case.
For harsh operating conditions (e.g. vibrations), all instruments are also available with an optional liquid filling.
The QR code on the dial allows instrument-specific information such as the serial number, the order number, certificates and other product data to be retrieved from the internet easily and in the long term.
The use of high-quality materials and the robust design are geared to applications in the chemical and process engineering industries with particularly aggressive acids or bases. The instrument is suitable for liquid and gaseous media, also in aggressive environments.
Scale ranges of 0 … 0.6 to 0 … 1,000 bar [0 … 10 to 0 … 15,000 psi] ensure the measuring ranges required for a wide variety of applications.
The safety version is made up of a non-splintering window, a solid baffle wall between measuring system and dial and a blow-out back. In the event of a failure, the user is protected at the front side, as media or components can only be ejected via the rear of the case.
For harsh operating conditions (e.g. vibrations), all instruments are also available with an optional liquid filling.
The QR code on the dial allows instrument-specific information such as the serial number, the order number, certificates and other product data to be retrieved from the internet easily and in the long term.
